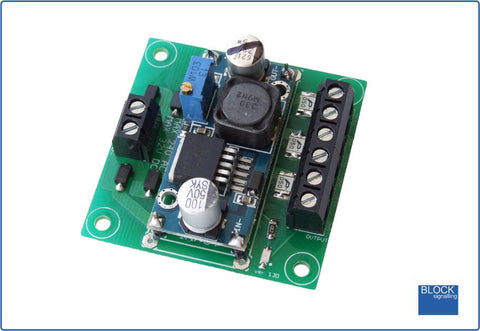

BLOCKsignalling PSU1 Universal 12v Dc Power Supply

Multipurpose Power Supply to power a variety of features and modulesWide range of acceptable input voltagesAccepts AC, DC or DCC inputsProvides three separate stable 12V DC outputsAll outputs overload protected with automatic resetThis module fills the gap where a number of stable 12V DC power supplies are required for accessories, but only a single AC or DC power supply is available.The input automatically adjusts for all power inputs in the range of 15V to 32V DC or 14V to 24V AC.Each of the three 12V DC outputs has a 250mA self-resetting fuse, so in the event of a short circuit or overload, the power will be cut and then automatically reconnected after the fault has been cleared and the fuse has had time to cool.On-board led indicates when the module output is present.SpecificationOutput Voltage: Factory set to 12V DC +/- 4% (typically +/-2%)Maximum Input Voltage: 32V DC or 24V ACMinimum Input Voltage for stated Output Voltage: 14V DC or 14V ACMaximum Current (per output): 500mA Connection

PSU1
