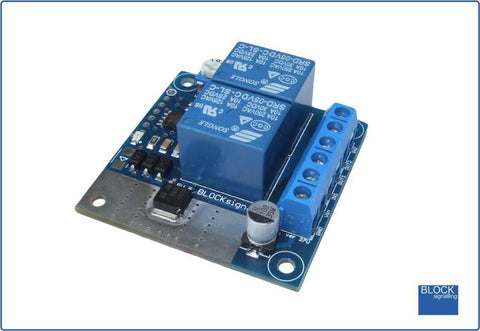

BLOCKsignalling SS1-R Retail Only Shuttle (Random)

Simple Shuttle Train Controller with Randomised Delay Automatically operates a train backwards and forwards along a single line Waiting time at the ends can be varied with a simple screwdriver adjustment Timing is randomised to between 50% and 100% of the maximum set time on each run An led on the PCB shows when the relays are energised Microprocessor controlled for accuracy Simple wiring and operation The BLOCKsignalling Simple Shuttle is designed to automate a DC model train running backwards and forwards along a single length of track. At each end of the track, a diode is fixed across an insulated rail gap to stop the train until the track current is automatically reversed by the module and the train will start traveling in the opposite direction. The time between each change in current direction can be changed by a simple screwdriver adjustment. The maximum delay time for each direction is adjustable between 1 second and 10 minutes. Each time the train reached the end of the track, the next time delay is evaluated, and will range between 50% and 100% of the maximum set time. For example, if 4 minutes is set as the maximum delay, the time before the current is reverse again will be between 2 minute and 4 minutes. You must ensure that the train can reach the end of the line within the minimum time. Each of the relays are rated at 10A for long life (traction current is typically 0.5A to 1A). Power Supply The module operates from any DC supply in the range 8V DC to 25V DC, or any AC supply in the range 8V AC to 16V AC. If the track voltage is above 7V DC, then the module can be connected to the track power supply. Please see wiring diagrams below for details. DCC track power can also be used to feed the module. For full details see this page of the website: http://www.blocksignalling.co.uk/index.php/simple-shuttle-ramdom-ss1r
