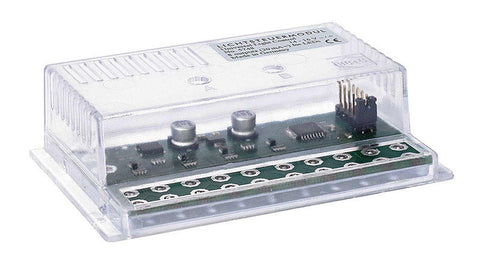

Busch 5748 Light control module

The module has 8 double outputs to connect a total of 16 light-emitting diodes or articles with built-in LEDs such as St. Andrews crosses, traffic lights, billboards, construction site warning beacons, flashes, etc. A variety of programs is available to control the LEDs, including:Building site flasher. Traffic Signals. Traffic lights. Pedestrian traffic lights and radar flashes. Construction site lights and flashing lights. Flares and blue light or double flash of modern vehicles. Various running lights for advertising pamphlets. Photo flashes or radar systems. House lighting (random control)Party with light organ, disco, ghost castle alarm system. The lighting programs can be easily selected via a jumper. LEDs are connected directly (without series resistors). Due to the easy handling and diverse controls, this module can be used universally on all model railway layouts. Technical data: Power supply: 10-24 V = / 8-18 V ~ Current consumption: max. 200 mA outputs: 16 x 10 mA for LEDs

5748
